2012 Toyota FJ Cruiser — Gloss Black Web Spoke with Carbon Fiber Lip Wrap and Trail Teams Green Accent Forged Monoblock (24×10 Overland Show Build)

Engineering Notes

XINGTU's engineers want to highlight three details that define this build.

First, all fitment numbers here are customer-submitted, not OEM-derived. A stock 2012 FJ Cruiser runs 17"×7.5" with roughly ET+30 on 6×139.7 / CB106.1 — the customer's spec of 24×10 with ET-47 is a full show-build configuration that pushes the wheel dramatically outboard of the OEM position. XINGTU's engineers built strictly to the submitted numbers on the assumption that the customer's vehicle has already been rebuilt for this fitment (widened / flared arches, appropriate lift height, and any necessary steering-lock and inner-fender clearance work). Because this is a made-to-order forged wheel — not a bolt-on OEM replacement — responsibility for arch clearance, suspension travel, and drivetrain compatibility stays with the customer's build. The 106.1 mm bore is machined hub-centric to the FJ's factory hub, so the wheel loads on the hub rather than the studs.

Second, this is a forged monoblock sized for the FJ's 2-tonne body-on-frame chassis, not a light coupe. The web-spoke face and barrel are cut from one continuous 6061-T6 forged billet with unbroken grain flow from the hub to the rim — critical on a 24×10 wheel that has to hold a 900 kg per-wheel load rating for a truck that weighs ~2,020 kg empty and often carries roof racks, bumpers, and overland gear on top. 900 kg × 4 = 3,600 kg total capacity gives comfortable dynamic margin above the FJ's real-world loaded weight, and meets VIA + JWL-T equivalent structural testing. At 17.8 kg per wheel for a 24×10 forged truck monoblock, this build is a genuinely lightweight solution for the diameter — a cast 24 in the same shape would either fail the load target or become dangerously heavy.

Third, the finish is a three-material composition, and the color story is deliberate. The center face and barrel are wet-sprayed in deep gloss black (base coat + two clear coats, controlled-temperature cure). The outer lip is then hand-wrapped in a real-carbon-fiber decorative sleeve for texture contrast against the gloss black body — this is a cosmetic wrap, not a structural carbon component; the wheel's load path is carried entirely by the forged 6061-T6 face and barrel underneath. Finally, one single hexagonal window on the face is masked and sprayed in FJ Cruiser Trail Teams fluorescent green — a direct visual callout to Toyota's own Trail Teams Special Edition color, so the wheel reads as a purposeful FJ tribute rather than a generic black wheel with a random accent. Combining wet paint + carbon wrap + masked accent paint on the same forged shell is what extends the delivery timeline versus a single-finish monoblock.

From Design to Delivery

• CMM dimensional inspection (PCD / CB / runout)
• Dynamic balancing on every wheel (≤5 g)
• Forged 6061-T6, hub-centric machining verified X-ray + dye-penetrant
• NDT on every wheel Gloss black wet paint color match, gloss uniformity & clear coat cure verified
• Trail Teams green accent color match under standard D65 lighting
• Carbon fiber lip wrap adhesion + edge seal inspection

Result

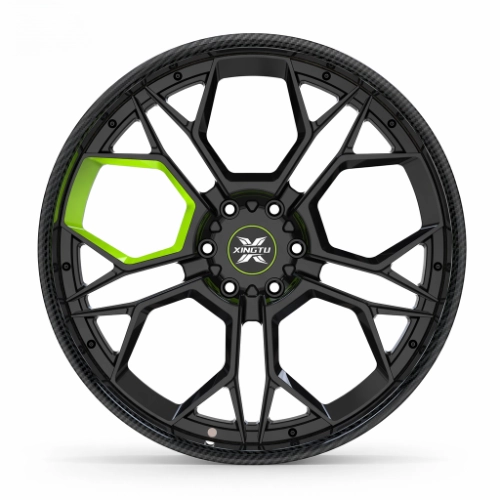

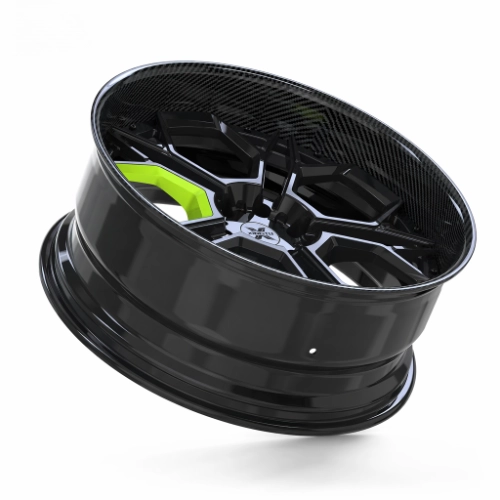

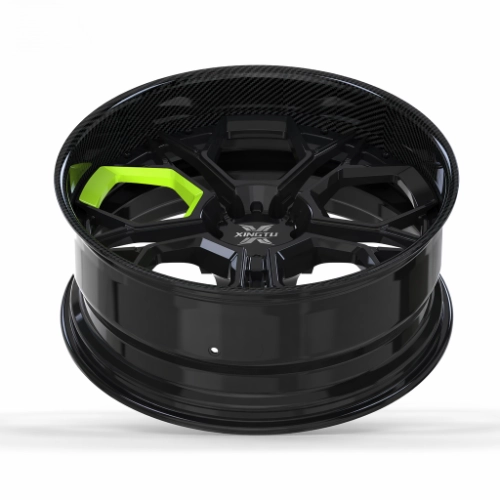

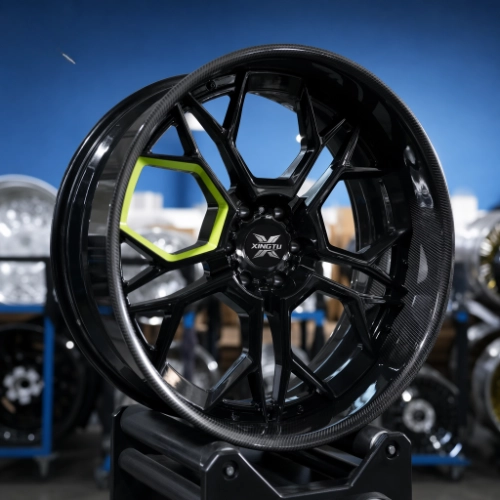

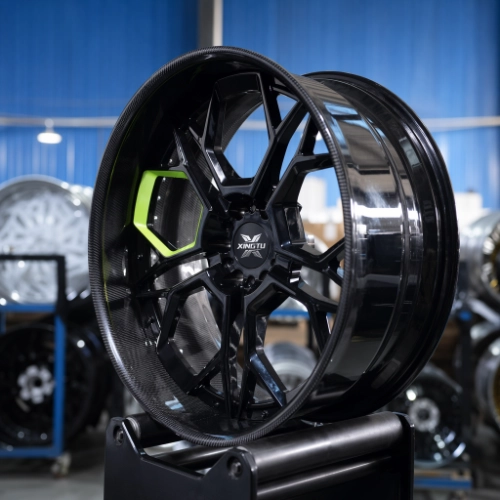

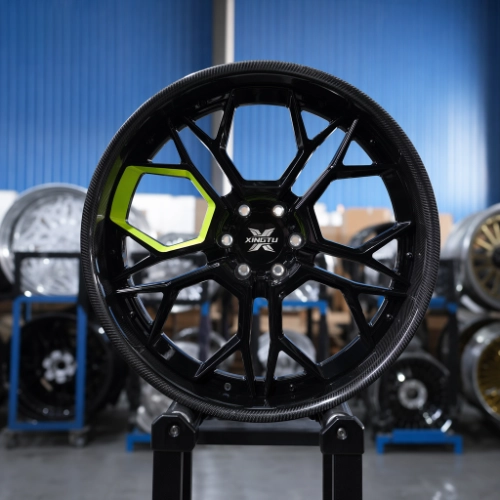

Compare the studio render on the left with the finished wheels photographed in-plant on the right—the concept and the reality match precisely. Deep gloss black web-spoke face, a single Trail Teams green hexagonal window landing exactly where the render placed it, and a real carbon fiber outer lip that adds texture depth under studio lighting. 24×10 forged monoblock, 900 kg-per-wheel load-rated, and built strictly to the customer's submitted fitment for an already-modified 2012 FJ Cruiser show build.

Building an FJ Cruiser, 4Runner, Land Cruiser, Tacoma, or any 6×139.7 body-on-frame Toyota show truck with already-modified arches?

XINGTU forges to your exact submitted fitment—including 22"–26" diameters, deep-negative offsets, painted / carbon-wrapped / multi-color finishes, and factory-color callouts like FJ Cruiser Trail Teams Green.

MOQ 1 set, DDP worldwide. Send your specs for a free fitment check.
