2014 Audi S5 | 19″ 2-Piece Forged Mesh · Glossy Gunmetal Center + Gloss Black Lip
- Model: RC768-1XT

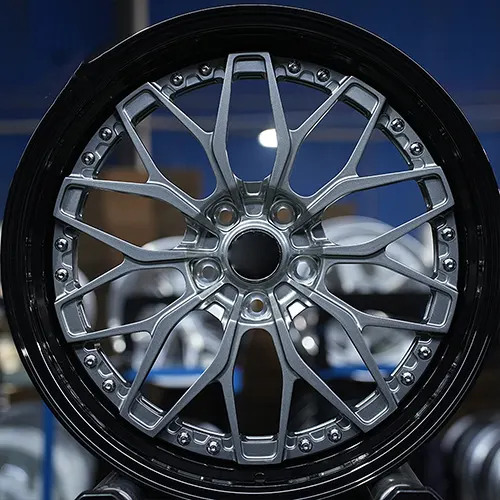

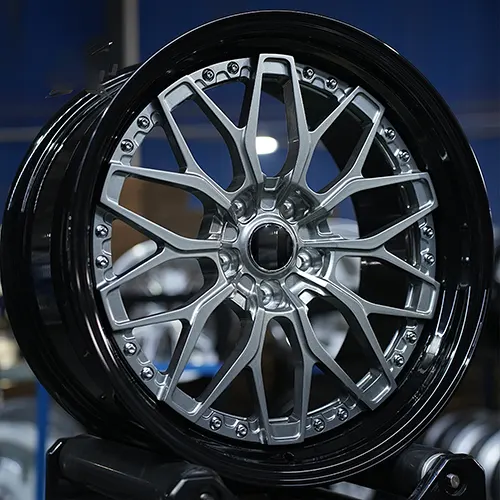

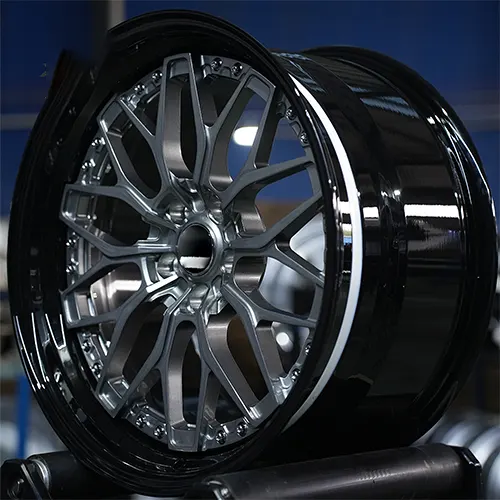

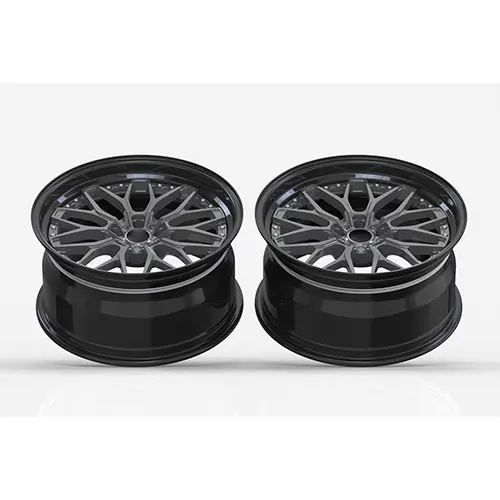

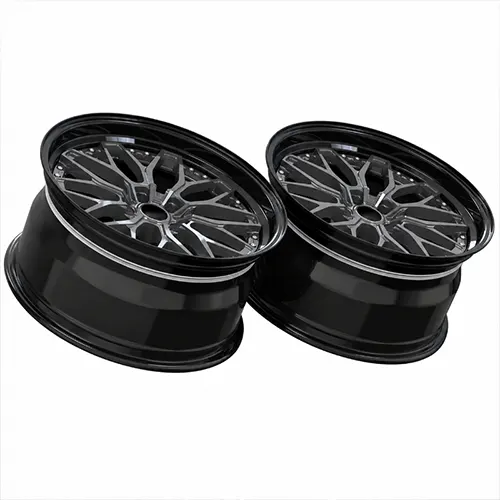

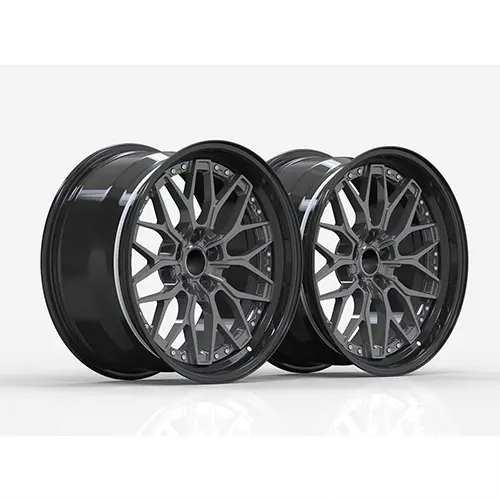

The B8 S5 is one of Audi’s best-looking coupes — a supercharged V6 grand-tourer that deserves wheels with motorsport intent. This owner wanted a deep, technical mesh design that reads aggressive up close but stays clean from across the street. XINGTU delivered a square 19×10 two-piece forged set: a glossy gunmetal mesh center bolted into a gloss black lip, finished with an exposed hardware ring for unmistakable two-piece motorsport character.
Specifications
| Item | Specification |
| Model No. | RC768‑1XT |
| Wheel Size | 19×10 (Square) |
| Bolt Pattern (PCD) | 5×112 |
| Front Offset (ET) | 25 |
| Rear Offset (ET) | 30 |
| Center Bore | 66.5 mm |
| Front Weight | 11.9 kg |
| Rear Weight | 11.7 kg |
| Load Rating | 750 kg |
| Construction | 2‑Piece Forged, 6061‑T6 aluminum |
-
Descriptions
Engineering Notes
A square 19x10 setup on the S5 is a deliberate performance call—equal width front and rear maximizes contact patch for the Quattro all-wheel-drive system and allows true square tire rotation for even wear. We split the offsets ET25 front / ET30 rear to dial in flush fitment at each axle despite the matched width, holding the 5x112 / CB66.5 bore hubcentric to Audi's exact spec for a vibration-free fit with no spacer rings. The two-piece construction lets us run the glossy gunmetal center against an independent gloss black lip—two distinct finishes a monoblock can't separate as cleanly—and the bolt assembly is torque-spec'd and pressure-tested for a sealed, even-loading interface.
From Design to Delivery
Quality Verified
- CMM dimensional inspection on PCD, bore & offset
- Torque-spec assembly hardware, sealed & pressure-tested
- Dynamic balancing on every wheel
- Load-rated to 750kg per wheel
Result
A square, aggressive stance with a deep technical mesh face—the gunmetal-and-black contrast suits the S5's understated muscle, while two-piece forged construction keeps it strong, serviceable, and ready for future refinishing.
Own an S5, A5, or other 5x112 Audi?
Get a custom two-piece forged set in your exact size & finish
-
Applications
- Luxury & Premium Vehicles: Designed for luxury sedans, SUVs, and premium vehicles requiring enhanced appearance, refined styling, and OEM-level fitment precision.
- Performance & Track Builds: Optimized for performance vehicles where lightweight construction, structural strength, brake clearance, and handling response are critical.
- Custom Tuning Projects: Fully customizable in diameter, width, offset, bolt pattern, finish, and design to meet unique vehicle builds and individual styling requirements.
- Classic & Restomod Vehicles: Modern forged wheel solutions for classic cars, combining advanced engineering with timeless styling while preserving the vehicle’s original character.
- Show Cars & Exhibition Builds: Premium forged wheels featuring unique designs and high-end finishes, created for show-quality vehicles demanding exceptional visual impact.
- SUV & Off-Road Customization: Engineered for high-performance SUVs and customized builds requiring durability, higher load capacity, and distinctive styling.
- OEM Replacement & Upgrade: Precision-engineered replacement solutions that maintain factory-level fitment while improving appearance, performance, and driving confidence.
- Automotive Brands & Tuning Shops: Reliable custom wheel solutions for automotive brands, tuning shops, and distributors, supporting prototype development, small-batch production, and long-term supply partnerships.
-
FAQs
1. Can you customize wheels based on my vehicle specifications?
A: Yes. We provide full customization based on vehicle model, wheel size, width, offset, bolt pattern, center bore, brake clearance, and design requirements.2. What information do you need before starting a custom wheel project?
A: We usually require your vehicle make, model, and year, along with wheel diameter and width, bolt pattern (PCD), offset (ET), brake clearance requirements, and preferred wheel design and finish details.3. What materials are used for forged wheels?
A: Our forged wheels are manufactured using high-strength aerospace-grade aluminum alloys, providing excellent strength-to-weight performance.4. What finishes are available?
A: We offer a wide range of finish options, including brushed finish, polished finish, gloss black, matte finish, custom color coating, and two-tone finishes to meet different styling requirements.5. What is the typical production lead time?
A: Production time depends on design complexity, quantity, and finishing requirements. A typical custom project usually takes 30–45 days, including engineering confirmation, machining, QC, and delivery preparation.
6. Do you support small quantity orders?
A: Yes. We support prototype development, sample orders, and small-batch production for tuning shops, distributors, and automotive brands.
