2015 Cadillac Escalade — Polished Face with Gloss Blue Barrel Forged Monoblock (24×14 Ultra-Wide Show Build)

Engineering Notes

XINGTU's engineers want to highlight three details that define this build.

First, all fitment numbers here are customer-submitted, not OEM-derived. A stock 2015 Cadillac Escalade runs roughly ET+24 to ET+31 with an 8"–9" wide 22" wheel — the customer's spec of 24x14 with ET-76 is an ultra-wide show-build configuration that pushes the wheel far outboard of the OEM position. XINGTU's engineers built strictly to the submitted numbers on the assumption that the customer's vehicle has already been rebuilt for this fitment (widened arches, extended suspension geometry, and any necessary hub/brake clearance work). Because this is a made-to-order forged wheel, not a bolt-on OEM replacement, the responsibility for arch clearance, suspension travel, and drivetrain compatibility stays with the customer's build.

Second, this is a forged monoblock built for load, not just for show. The multi-spoke face and barrel are cut from one continuous 6061-T6 forged billet with unbroken grain flow from the hub to the rim — critical on a 24x14 wheel at 19 kg net that has to hold a 1,100 kg-per-wheel load rating. At this diameter and width, a cast wheel would either fail the load target or need enough material to become dangerously heavy; the forged monoblock construction is what makes the ultra-wide show fitment structurally realistic. The 78.1 mm bore is machined hub-centric to the customer's confirmed hub, so the wheel carries load on the hub, not the studs.

Third, the finish is a two-process job with an extended pipeline. The center face is CNC-polished directly on the forged aluminum for a bright bare-metal appearance — no plating, no paint. The outer barrel then receives a full gloss blue paint process: surface prep, custom color-matched base coat, then two clear coats cured under controlled temperature for depth, gloss uniformity, and long-term UV resistance. Combining these two very different finishes on the same forged shell requires careful masking, sequential curing, and dedicated QC — this is what extends the delivery timeline compared with a single-finish monoblock.

From Design to Delivery

• CMM dimensional inspection (PCD / CB / runout)
• Dynamic balancing on every wheel
• Forged 6061-T6, hub-centric machining verified
• CNC polished center face finish QC under controlled lighting
• Gloss blue barrel color match, gloss uniformity & clear coat cure verified
• Ultra-wide 24x14 rim runout & structural inspection

Result

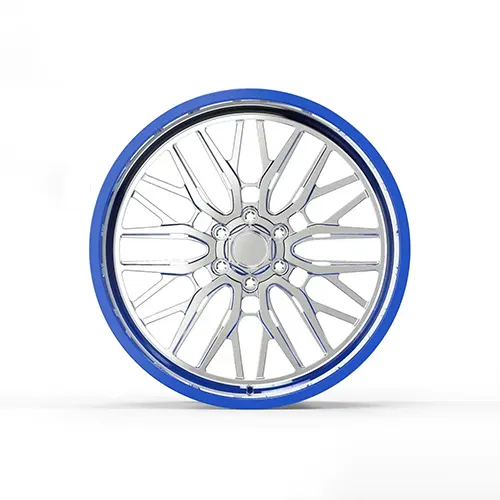

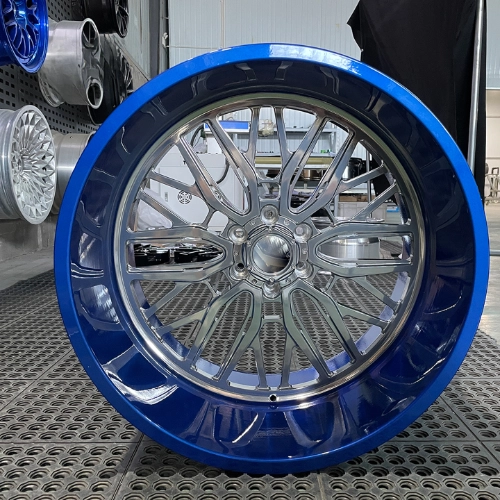

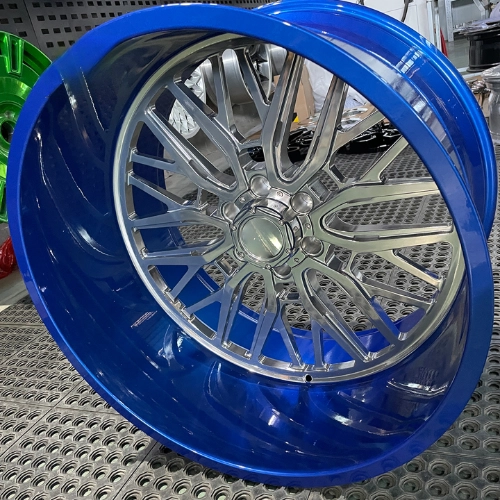

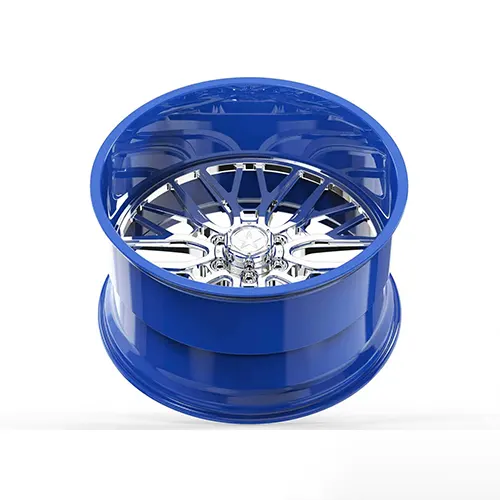

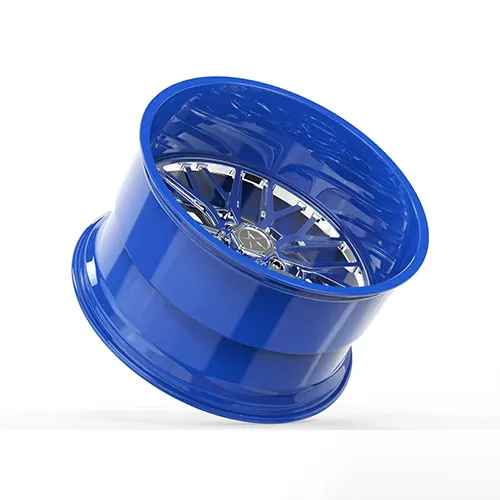

Compare the studio render on the left with the finished wheels photographed in-plant on the right
—the concept and the reality match precisely. The bright CNC-polished multi-spoke face throws a mirror reflection from the center, while the gloss blue barrel delivers a saturated show-car finish that reads dramatically at any distance. Ultra-wide 24x14 forged monoblock, 1,100 kg-per-wheel load-rated, and built strictly to the customer's submitted fitment.

Building a full-size SUV or heavy-platform show truck with custom widened arches?

XINGTU forges to your exact submitted fitment—including ultra-wide diameters, deep-negative offsets, custom two-process finishes, and any hub configuration.

 MOQ 1 set, DDP worldwide. Send your car and color preference for a free fitment check.

• Luxury & Premium Vehicles: Designed for luxury sedans, SUVs, and premium vehicles requiring enhanced appearance, refined styling, and OEM-level fitment precision.
• Performance & Track Builds: Optimized for performance vehicles where lightweight construction, structural strength, brake clearance, and handling response are critical.
• Custom Tuning Projects: Fully customizable in diameter, width, offset, bolt pattern, finish, and design to meet unique vehicle builds and individual styling requirements.
• Classic & Restomod Vehicles: Modern forged wheel solutions for classic cars, combining advanced engineering with timeless styling while preserving the vehicle’s original character.
• Show Cars & Exhibition Builds: Premium forged wheels featuring unique designs and high-end finishes, created for show-quality vehicles demanding exceptional visual impact.
• SUV & Off-Road Customization: Engineered for high-performance SUVs and customized builds requiring durability, higher load capacity, and distinctive styling.
• OEM Replacement & Upgrade: Precision-engineered replacement solutions that maintain factory-level fitment while improving appearance, performance, and driving confidence.
• Automotive Brands & Tuning Shops: Reliable custom wheel solutions for automotive brands, tuning shops, and distributors, supporting prototype development, small-batch production, and long-term supply partnerships.

1. Can you customize wheels based on my vehicle specifications?
A: Yes. We provide full customization based on vehicle model, wheel size, width, offset, bolt pattern, center bore, brake clearance, and design requirements.

2. What information do you need before starting a custom wheel project?
A: We usually require your vehicle make, model, and year, along with wheel diameter and width, bolt pattern (PCD), offset (ET), brake clearance requirements, and preferred wheel design and finish details.

3. What materials are used for forged wheels?
A: Our forged wheels are manufactured using high-strength aerospace-grade aluminum alloys, providing excellent strength-to-weight performance.

4. What finishes are available?
A: We offer a wide range of finish options, including brushed finish, polished finish, gloss black, matte finish, custom color coating, and two-tone finishes to meet different styling requirements.

5. What is the typical production lead time?
A: Production time depends on design complexity, quantity, and finishing requirements. A typical custom project usually takes 30–45 days, including engineering confirmation, machining, QC, and delivery preparation.

6. Do you support small quantity orders?
A: Yes. We support prototype development, sample orders, and small-batch production for tuning shops, distributors, and automotive brands.
