19×8.5 Forged Monoblock Wheels for 2024 BMW X5 M (G05) – Brushed Silver BBS-Style Mesh with Left/Right-Directional Carbon Fiber Rings 5×112

Engineering Notes

XINGTU's engineers want to highlight three details that define this build.

First, all fitment numbers here match the 2024 BMW X5 M (G05) factory chassis. 5×112 PCD, 66.6 mm hub-centric bore, ET40 — this is the correct trio for G05, and BMW M-family has used 5×112 since 2019. Critical detail: the lug seat here is 15×32×R14 ball seat with a short shank, not a 60° taper. G05 X5 M uses factory R14 ball-seat wheel bolts, so the wheel seat MUST match — a taper-seat wheel installed on ball-seat bolts (or vice versa) contacts on a knife-edge instead of full seat surface, which gives false torque readings and can loosen under load. XINGTU's engineers cut the ball seats with the exact 15×32×R14 profile so OEM BMW bolts torque correctly to spec (140 Nm), full-seat contact, re-torque after first 100 km.

Second, this is a forged monoblock built for the 2.4-tonne X5 M chassis, and the BBS-style mesh face is not just cosmetic. The multi-spoke woven pattern is cut from one continuous 6061-T6 forged billet, with each mesh spoke thickness sized in FEA to carry sustained lateral and vertical load from a 617 hp AWD SUV — not scaled down from a light coupe drawing. 750 kg per-wheel load rating × 4 = 3,000 kg total capacity is sufficient for the X5 M's ~2,435 kg curb weight, meeting VIA + JWL-T equivalent structural testing. At 12.3 kg per wheel for a 19-inch forged SUV wheel, this build is genuinely light — the BBS-style mesh is one of the more material-efficient face patterns in aftermarket forging, and XINGTU's 5-axis machining lets the pattern be executed to a sharp period-correct profile rather than the softened castings most retro-style wheels use.

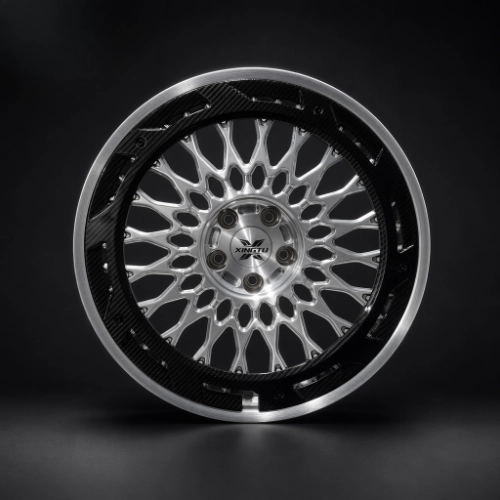

Third, the carbon fiber ring is cosmetic and deliberately directional. The outer ring is a real 3K carbon fiber decorative sleeve — hand-laid over a machined recess on the outer face — that adds a modern texture contrast against the traditional brushed silver mesh. This is a decorative ring, not a structural carbon component; the wheel's entire load path is carried by the forged 6061-T6 face and barrel underneath. The two-directional weave orientation (left-hand twill on driver-side wheels, right-hand twill on passenger-side wheels) is a detail borrowed from high-end motorsport aero parts — from the driver's viewpoint the twill lines flow rearward on both sides of the car, making the wheels look visually mirrored rather than repeated. This is what extends the delivery timeline versus a plain brushed-silver monoblock: the carbon layup + directional matching + edge sealing all add hand-work.

From Design to Delivery

• CMM dimensional inspection (PCD / CB / runout)
• R14 ball seat contact-surface profile verified against BMW OEM bolt
• Dynamic balancing on every wheel (≤5 g)
• Forged 6061-T6, hub-centric machining verified
• X-ray + dye-penetrant NDT on every wheel
• Brushed finish uniformity under controlled D65 lighting
• Carbon fiber ring adhesion + edge seal inspection
• Left/right pair directional match verified before packing

Result

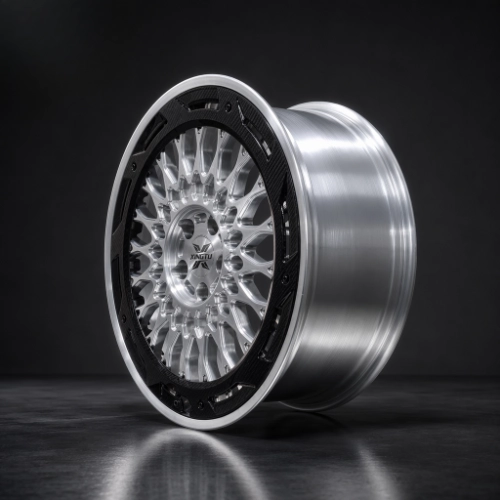

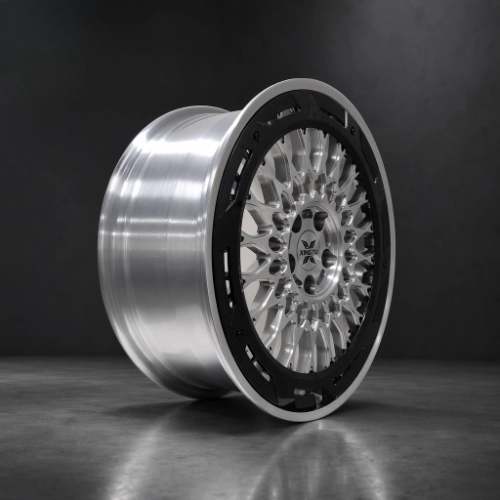

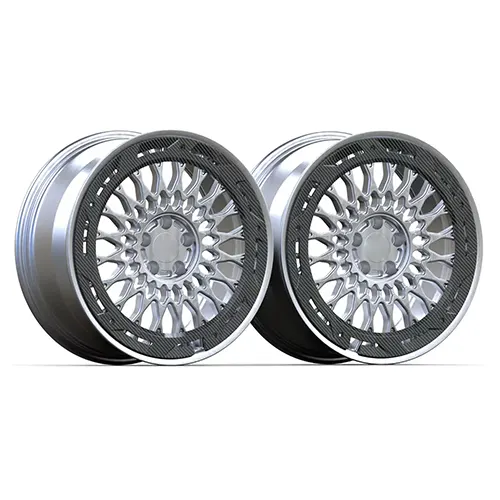

Compare the studio render on the left with the finished wheels photographed under studio lighting on the right—the concept and the reality match precisely. Dense BBS-style silver mesh reads as a period-correct 1980s motorsport face, while the directional carbon fiber ring gives it a modern SUV-scale aggression. 19×8.5 forged monoblock, R14 ball seat matched to OEM G05 X5 M bolts, 12.3 kg per wheel, 750 kg load-rated, and built as a direct bolt-on to the G05 chassis with no arch modification required.

Running a G05 X5 M, X6 M, X7, XM, or any current BMW M-family SUV and want a retro BBS-style face with modern carbon detailing?

XINGTU forges to your exact OEM fitment—including R14 ball seat matching, brushed / polished / painted finishes, and directional carbon fiber options.

MOQ 1 set, DDP worldwide. Send your car and spec preference for a free fitment check.

• Luxury & Premium Vehicles: Designed for luxury sedans, SUVs, and premium vehicles requiring enhanced appearance, refined styling, and OEM-level fitment precision.
• Performance & Track Builds: Optimized for performance vehicles where lightweight construction, structural strength, brake clearance, and handling response are critical.
• Custom Tuning Projects: Fully customizable in diameter, width, offset, bolt pattern, finish, and design to meet unique vehicle builds and individual styling requirements.
• Classic & Restomod Vehicles: Modern forged wheel solutions for classic cars, combining advanced engineering with timeless styling while preserving the vehicle’s original character.
• Show Cars & Exhibition Builds: Premium forged wheels featuring unique designs and high-end finishes, created for show-quality vehicles demanding exceptional visual impact.
• SUV & Off-Road Customization: Engineered for high-performance SUVs and customized builds requiring durability, higher load capacity, and distinctive styling.
• OEM Replacement & Upgrade: Precision-engineered replacement solutions that maintain factory-level fitment while improving appearance, performance, and driving confidence.
• Automotive Brands & Tuning Shops: Reliable custom wheel solutions for automotive brands, tuning shops, and distributors, supporting prototype development, small-batch production, and long-term supply partnerships.

1. Can you customize wheels based on my vehicle specifications?
A: Yes. We provide full customization based on vehicle model, wheel size, width, offset, bolt pattern, center bore, brake clearance, and design requirements.

2. What information do you need before starting a custom wheel project?
A: We usually require your vehicle make, model, and year, along with wheel diameter and width, bolt pattern (PCD), offset (ET), brake clearance requirements, and preferred wheel design and finish details.

3. What materials are used for forged wheels?
A: Our forged wheels are manufactured using high-strength aerospace-grade aluminum alloys, providing excellent strength-to-weight performance.

4. What finishes are available?
A: We offer a wide range of finish options, including brushed finish, polished finish, gloss black, matte finish, custom color coating, and two-tone finishes to meet different styling requirements.

5. What is the typical production lead time?
A: Production time depends on design complexity, quantity, and finishing requirements. A typical custom project usually takes 30–45 days, including engineering confirmation, machining, QC, and delivery preparation.

6. Do you support small quantity orders?
A: Yes. We support prototype development, sample orders, and small-batch production for tuning shops, distributors, and automotive brands.
